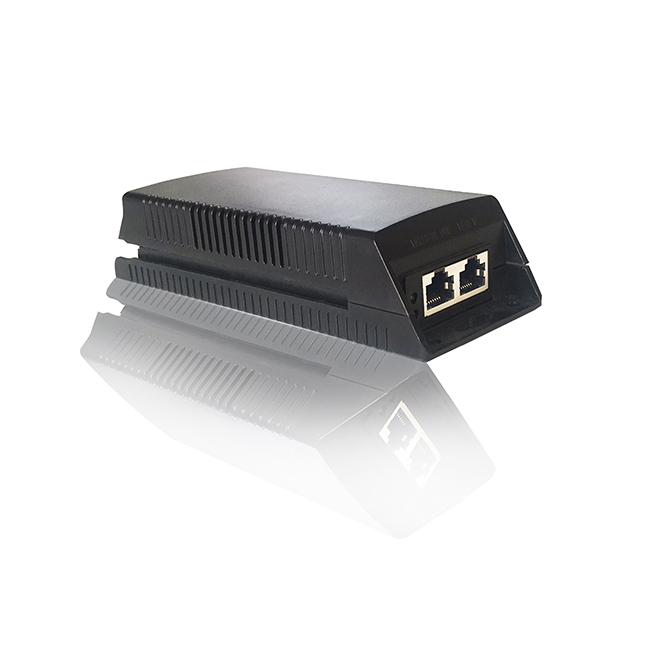

Hi POE 30W POE injector 1 Gigabit

Home / Products / IP Transmission / POE Injector / Detail

Hi POE 30W POE injector 1 Gigabit

● Power：AC100V~AC240V@50/60Hz;

● Transmission Media: Cat5/5e/6 Cable standard network cable;

● Standard: IEEE802.3at

● 10/100/1000M Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports

● Maximum 30 watts power for each POE port

● Total power : 30 watts

Description of this 30W Gigabit POE Injector Competitive Factory Directly Cost

713E-PSET a single-port PoE injector with one Ethernet port, one PoE output port,and one AC input power port. It supports end-span PoE and the output power consumption is up to 30W; 10/100M/1000Mbps network,100m transmission distance,industrial-level chip,and patent alert. it's an excellent choice for power supply and network transmission on PTZ/IP cameras, all-in-one PC, cctv surveillance cctv system,digital display system.

Specification of this 30W Gigabit POE Injector Competitive Factory Directly Cost

Item:713E-PSET		Description
Interface	Input Voltage	AC100V~AC240V
	Data Input	1×RJ45
	PoE output	1×RJ45
PoE	PoE Power Supply Type	End-span
	PoE Power Output	DC 54V/30 watts
	Output Ripple	＜5%
	Power Pin Assignment	Pair： 1/2(+),3/6(-)
Ethernet Port	Communication Port	1×RJ45 Input
	TransmissionRate	10/100/1000Mbps
	Transmission Medium	Cat5/5e/6 Cable
	Distance	100m (Max.)
Status	Power LED	1 (Red)
Status	PoE LED	1 (Orange)
Protection	Surge Protection	PoE Power：1KV(Differential Mode),2KV(Common Mode)1.2/50us，8/20us Ethernet：2KV(Differential Mode),6KV(Common Mode)10/7000us
Protection	ESD	1a Contact Discharge Level 3 1b Air Discharge Level 3 Per: IEC61000-4-2
Environment	Working Temperature	-10℃~55℃
	Storage Temperature	-40℃~85℃
	Humidity(Non-condensing)	0~90%
Mechanics	Dimension(LxWxH)	160mm×64mm×60mm
	Material	ABS Plastics
	Color	Black
	Weight	200g
