8 port Industrial POE switch 2 Uplink 2 fiber port

Home / Products / IP Transmission / Industrial poe switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

8 port Industrial POE switch 2 Uplink 2 fiber port


 8 x 1000Mbps downlink PoE Ethernet port, data transmission up to 100m
 Uplink port: 2 x Gigabit Fiber Ports,Data transmission: depends on the optical module
 Backplane Bandwidth: 20Gbps
 Packet Forwarding Rate: 14.88Mpps
 MAC Address List: 8K
 Power Adapter Voltage: DC 48V-57VDC
 Maximum 30 watts power for each PoE port
 IEEE 802.3af,IEEE 802.3at PoE Standard Compliant.
 PoE Power Supply Type:End-Span(1/2+,3/6-)
 Total Power: 120W
Description of this Gigabit Industrial 8 port POE Switch Gigabit 2 Fiber port

The TT-5802GE-POE is suitable for industrial, outdoor and other harsh environments, effectively avoiding the effects of high temperatures and extremely low temperatures. Redundant power supply design, support for hot backup of power supply, ensuring power supply requirements for connected devices, and standard DC port and green terminal port, support power adapter with different connectors and power. Provide 2 x Gigabit Fiber Ports, data transmission depends on the optical module you are using.

Specification of this Gigabit Industrial 8 port POE Switch Gigabit 2 Fiber port


Item

Description

Power

Power Adapter Voltage

48-57V DC

Consumption

<6W

Network Connector

Network Port

Combo port, SFP optical port: 1000Mbps

Other optical port: 10/100/1000Mbps

Transmission Distance

Ethernet port:100m;

SFP optical port: depend on the optical moduletransmission performance

Transmission Medium

Cat5e/6 standard network cable

Network Switch

Network Standard Switching Capacity

IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE802.3z

20Gbps

Packet Forwarding Rate

14.88Mpps

MAC Table

8K

Power Over Ethernet

PoE Standard

IEEE 802.3af/at;

PoE Power Supply Type

End-Span(1/2+;3/6-) / 4 pairs wire;

PoE Power Consumption

 Single Port<30W/Single Port<60W,total power:120W;

LED Status Indicator

PoE Ethernet LED Indicator

Power: 1 red light indicates that the power normal work;

POE: 8 yellow lights indicate POE is power on;

Ethernet: 8 Green lights indicate network status;

Fiber:2 Green lights indicate fiber working status;

Environmental

Working temperature

-40℃~75℃

Relative Humidity

-40℃-85℃

Storage temperature

5-95%

Mechanical

Dimension (L×W× H)

163mm*110mm*46.5mm

Color

Black

Weight

750g

Stability

MTBF

>30000h


Application of this Gigabit Industrial 8 port POE Switch Gigabit 2 Fiber port

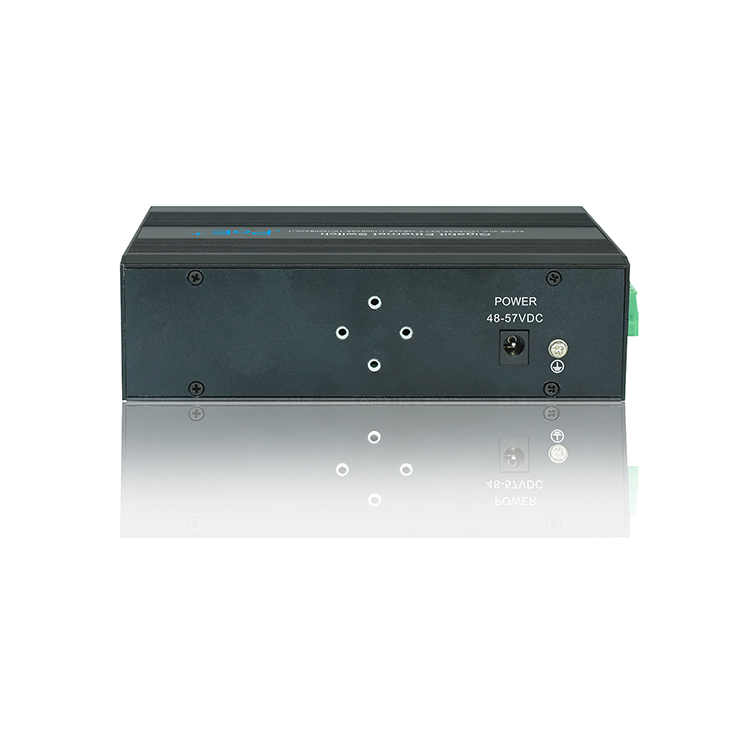

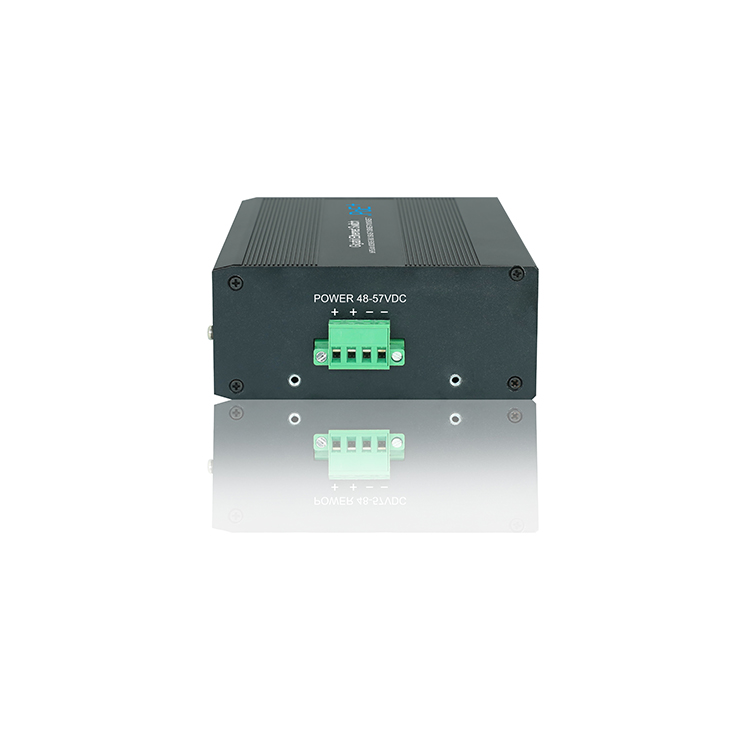

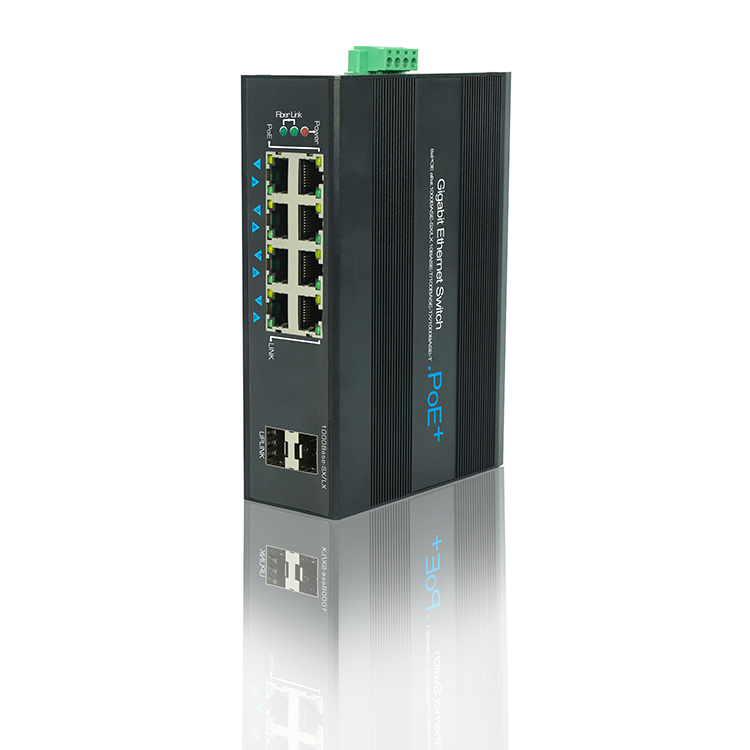

Pictures of this Gigabit Industrial 8 port POE Switch Gigabit 2 Fiber port
