4 port Industrial POE switch 2 Uplink 2 fiber port

Home / Products / IP Transmission / Industrial poe switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

4 port Industrial POE switch 2 Uplink 2 fiber port

 4 x 1000Mbps downlink PoE Ethernet port, data transmission up to 100m
 Uplink port: 2 x Gigabit Ethernet port,Data transmission up to 100m, and 2 x Gigabit Fiber Ports,Data transmission: depends on the optical module, wherein 1 optical port and 1 Ethernet port are Combo ports
 Backplane Bandwidth: 16Gbps
 Packet Forwarding Rate: 11.904Mpps
 MAC Address List: 8K
 Power Adapter Voltage: DC 48V-57VDC
 Maximum 60 watts power for each PoE port
 IEEE 802.3af,IEEE 802.3at PoE Standard Compliant.IEEE802.3at up to 60 watts
 PoE Power Supply Type:End-Span(1/2+,3/6-)
 Total Power: 65W
Description of this Full Gigabit 4 Port Industrial PoE Switch

The TT-5422GE-POE is a industrial poe switch, suitable for harsh outdoor environments. It provide 2 optical and 2 Ethernet uplink ports, wherein 1 optical port and 1 Ethernet port are Combo ports, 4x10/100/1000 Mbps adaptive downlink ports, 1~4 ports of PoE switch support IEEE802.3af.

For network standard: IEEE802.3 ,IEEE802.3u ,IEEE802.3ab,IEEE802.3z, IEEE802.3 af/at.
For power design: standard DC port and green terminal port, support power adapter with different connectors and power, redundant power design, support power hot backup.

Specification of this Full Gigabit 4 Port Industrial PoE Switches


 Item

Description

Power

Power Adapter Voltage

48-57V DC

Consumption

<6W

Network Connector

Network Port

Combo port, SFP optical port: 1000Mbps

Other optical port: 10/100/1000Mbps

Transmission Distance

Ethernet port:100m;

SFP optical port: depend on the optical moduletransmission performance

Transmission Medium

Cat5e/6 standard network cable

Network Switch

Network Standard Switching Capacity

IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE802.3z

16Gbps

Packet Forwarding Rate

11.904Mpps

MAC Table

8K

Power Over Ethernet

PoE Standard

IEEE 802.3af/at

PoE Power Supply Type

End-Span(1/2+;3/6-) / 4 pairs wire

PoE Power Consumption

Single Port<30W/Single Port<60W

LED Status Indicator

PoE Ethernet LED Indicator

Power: 1 red light indicates that the power normal work;

POE: 4 yellow lights indicate POE is power on

Ethernet: 6 green lights indicate network status

Fiber:2 Green lights indicate fiber working status;

Environmental

Working temperature

-40℃~75℃

Relative Humidity

-40℃-85℃

Storage temperature

5-95%

Mechanical

Dimension (L×W× H)

163mm*110mm*46.5mm

Color

Silver-Gray

Weight

560g

Stability

MTBF

>30000h


Application of this Full Gigabit 4 Port Industrial PoE Switches

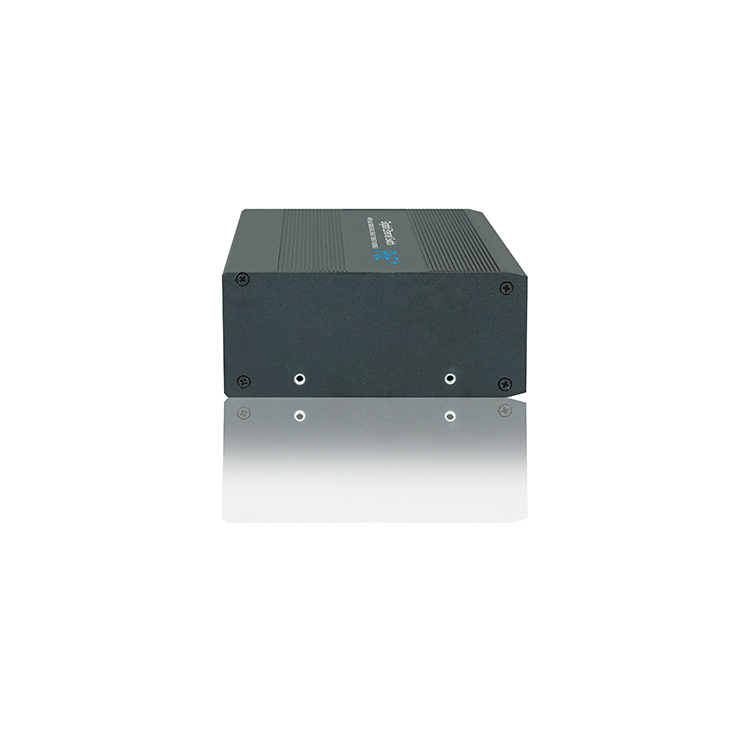

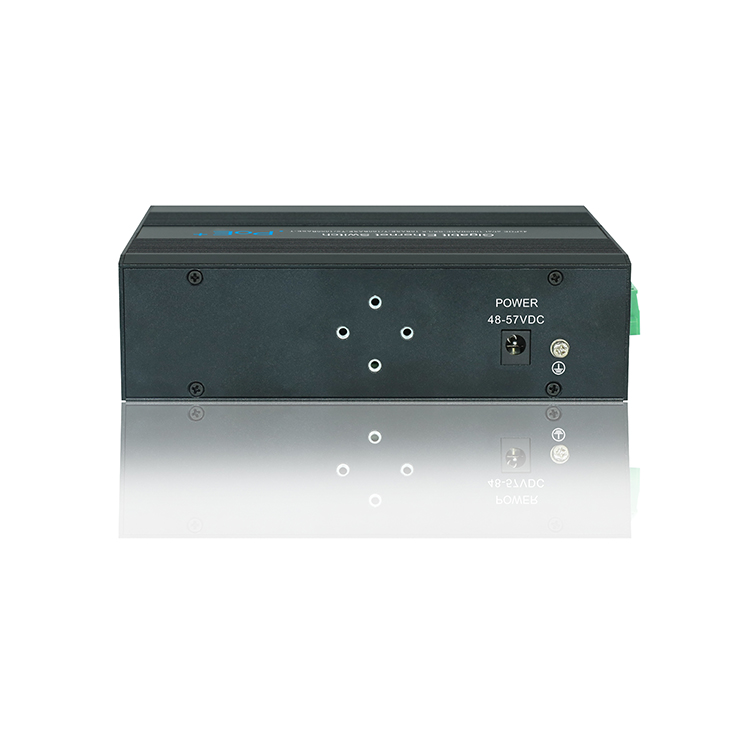

Pictures of this Full Gigabit 4 Port Industrial PoE Switches
