Ethernet power over Coax convertor support EPOE

Home / Products / IP Transmission / EOC / Detail

..
..
  • ..
  • ..
  • ..

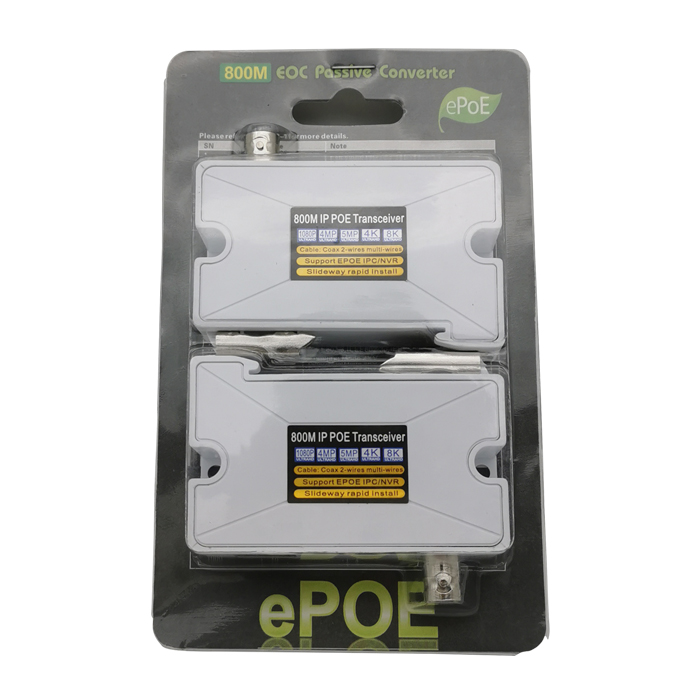

Ethernet power over Coax convertor support EPOE

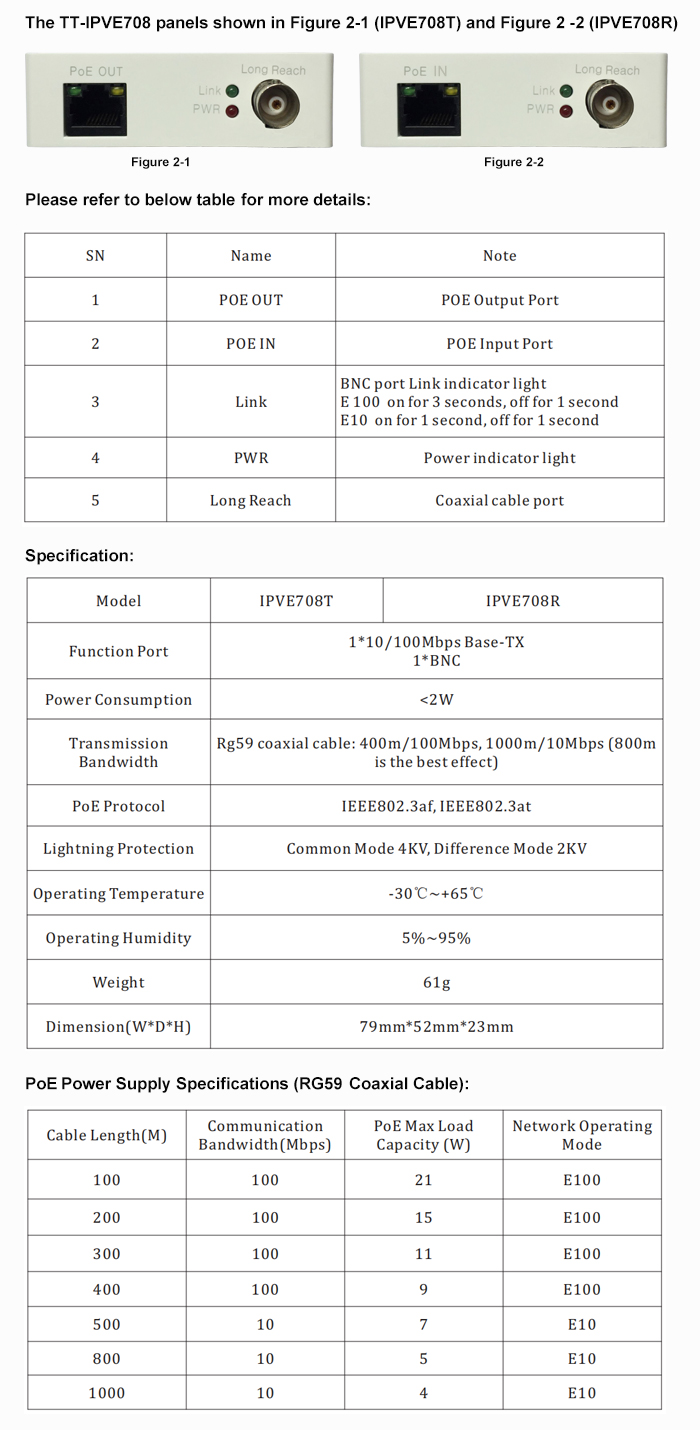

● Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
● Supports IEEE802.3af and IEEE802.3at power supply standards
● Ports: 1*RJ45 10/100Mbps, 1*BNC
● Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
● Supports MDI/MDIX self-adaption
● Supports long range power supply tranmission via coaxial cable
● Operating temperature: -30 to +65
 Description of this Ethernet power over Coax convertor support EPOE IPC NVR

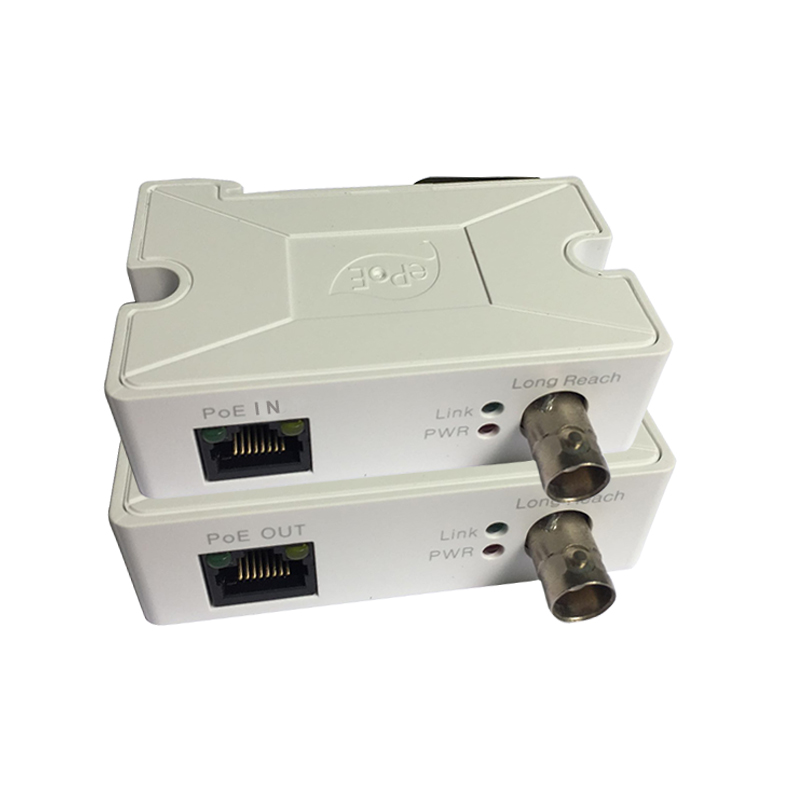

Single-Port Long Reach Ethernet over Coaxial Extender is a type of converter from RJ45 to BNC port,which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port.

The product is equipped with two transmission modes which are 100Mbps and10Mbps.It can be modified according to the transmission distance.

How EOC Can Benefit?

> IP has taken over the video surveillance market. All over the world, new projects or buildings are using IP video which offers high image quality, better integration with other networked devices as well as more advanced analytics capability.Indeed,demands for IP video are expected to drive further growth. According to Statistics, the global video surveillance market had a size of $19.5 billion in 2015 and is expected to reach $63.2 billion by 2022, growing at a compound annual growth rate of 18.3 percent. Meanwhile,the demands for IP related model such as EOC is (going) huge.

> EoC works by way of connecting IP devices to EoC adapters, which convert IP signals to analog ones that can be passed along the coaxial cable.

> Maximum lower the installation time and cost.

> Long range transmission via coaxial cable, High compatibility easy installation

Application:

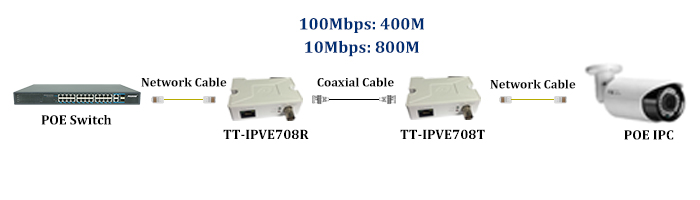

The product is divided into transmitter (IPVE708T) and receiver (IPVE708R).
IPVE708 is compatible with DAHUA ePOE Switch and all market other POE Switch.
POE Switch or Epoe IPC/NVR means the specific switch or IPC with the function of long distance.
