Active AHD CVI TVI HD video balun 3channel

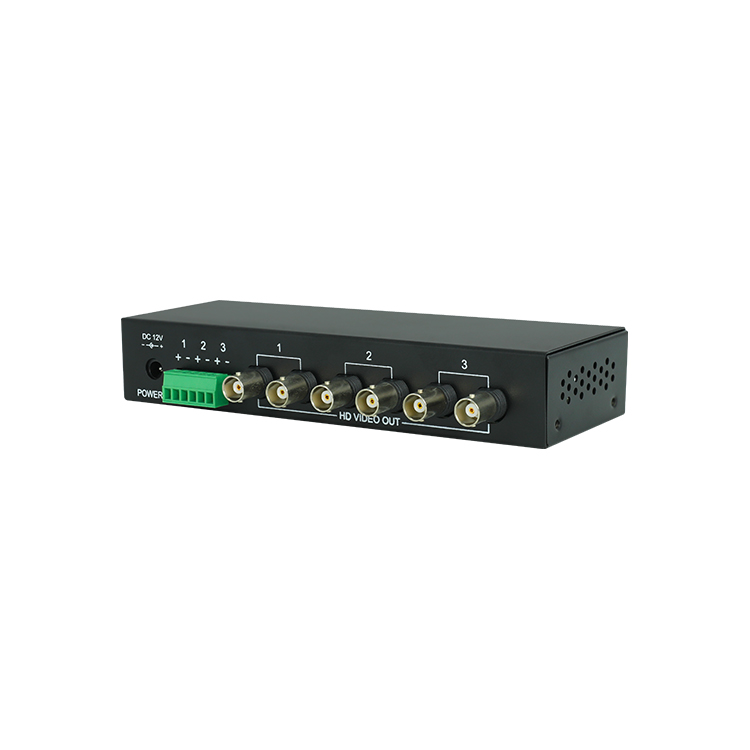

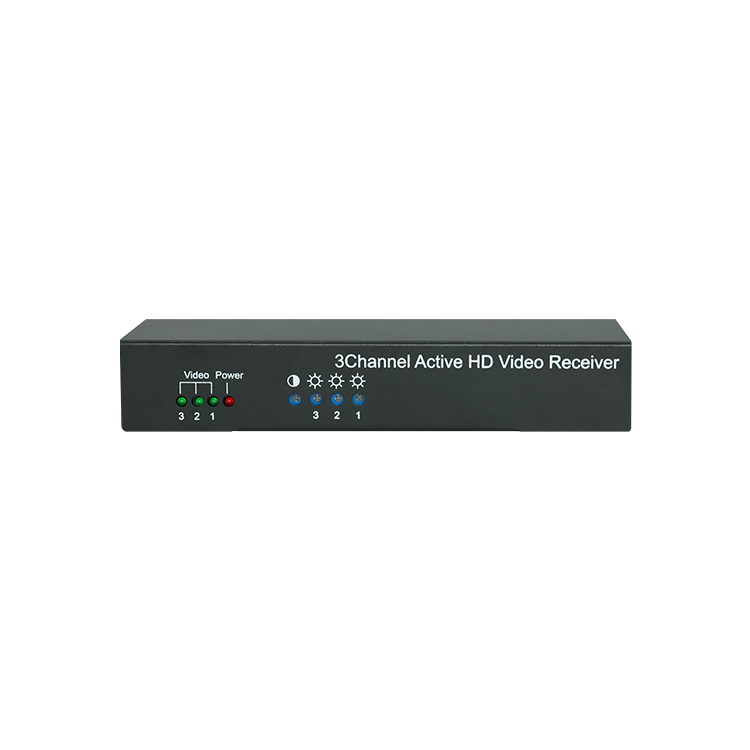

3 channel active Receiver,9-40V DC input,2 video output of each channel

Description of this Active AHD CVI TVI HD video balun 3channel

Transmission Channel: 3CH
Output: 6CH
Volage Range: DC9V~40V
Power Rate: <3W
Coaxial Port: Female BNC
UTP Cable Port: 6pin port
Video System: HDCVI/HDTVI/AHD/Analog
Signal Bandwidth: 65MHz
Anti-interference: >75dB
HD video transmission distance (Passive with active):
HDCVI 720P: 500M / 1080P: 350M;
HDTVI 720P/1080P: 300M;
AHD 720P: 500M / 1080P: 300M;
Analog: 650M
Power LED: RED
Signal LED: Green.
Power Port Protection: 2KV/1KA Per: IEC61000-4-5
Coaxial Port Protection: 2KV Per: IEC61000-4-5
RJ45 Port Protection: 2KV(Different Mode) 4KV(Common Mode) Per: IEC61000-4-5
ESD:
>1a contact discharge Level 3
>1b air discharge Level3
>Per: IEC61000-4-2
Working Temperature: 0ºC-55ºC
Storage Temperature: -20ºC-80ºC
Humidity: 0%-95%
Size: 180x35x60mm
Case: Aluminum
N.W.: 400g
MTBF: >20000H

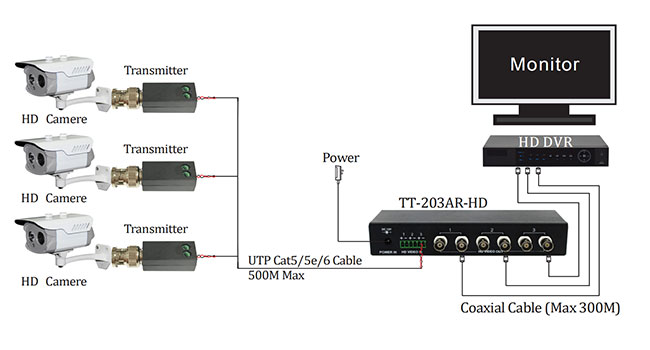

Active balun diagram:
