60M HDMI Extender
Home / Products / HDMI VGA Extender&Splitter / HDMI extender / Detail

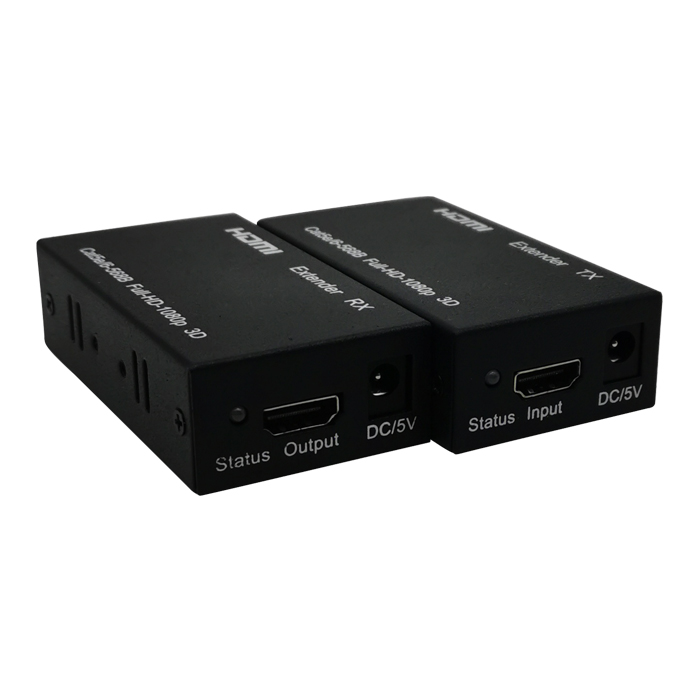

60M HDMI Extender
> Support HDMI 1.4a
> Support 3D,highest video resolution 1080p/60Hz
> Support 1.65Gbps data rate and tmds clock up to 165MHz
> Support 8/10/12 bit deep color
> Support AWG26 HDMI standard cable,input up to 15 metres,output up to 20 metres
> Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable,it can extend the distance up to 60 meters between TX and RX.
> Need DC5V/1A power supply
Description of this 60M HDMI Extender
The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost.
The Extender is designed to supply for long distance transmission of high definition signal. Our devices offer solutions for noise, space and security concerns, data center control, information distribution,conference room presentation,school and corporate training environments.
Specification:
Operating and Connecting：
1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 15 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 20 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 60 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red. RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
6.EDID button: The button can support the switch of EDID between 2D and 3D.(3D is the default EDID when the power is on)
The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost.
The Extender is designed to supply for long distance transmission of high definition signal. Our devices offer solutions for noise, space and security concerns, data center control, information distribution,conference room presentation,school and corporate training environments.
Specification:
Operating and Connecting：
1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 15 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 20 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 60 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red. RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
6.EDID button: The button can support the switch of EDID between 2D and 3D.(3D is the default EDID when the power is on)
