2CH HD CVI TVI AHD Video Multiplexer
Home / Products / HD Transmission / Video Multiplexer / Detail

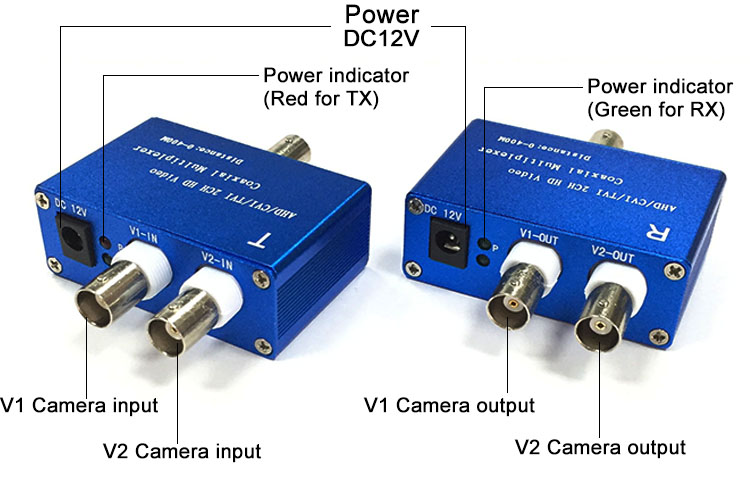

2CH HD CVI TVI AHD Video Multiplexer
2 channels HD Video Multiplexer can work with HD CVI,TVI, AHD.
Compatible for 720P,960P,1080P,3MP,4MP,5MP
Video Transmission via 75-5/RG6 single core Cable
Transmit Distance:0-400M(Max)
Description of this 2CH HD CVI TVI AHD Video Multiplexer

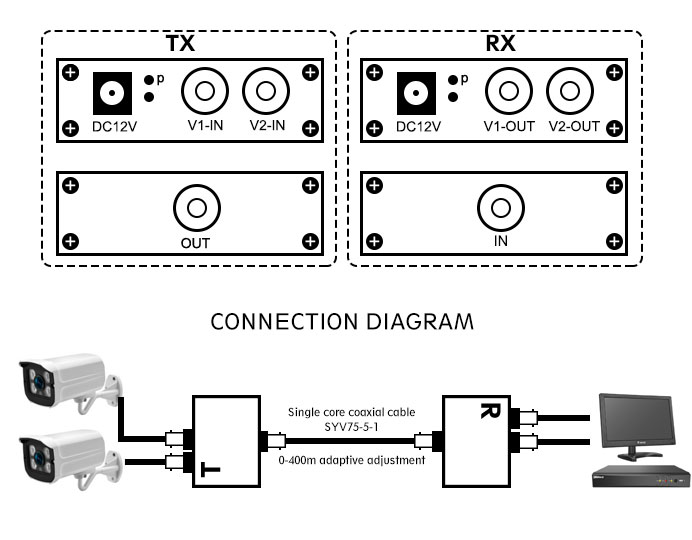

The unit adopts special compression modulation technology, the transmitter side compress 2CH CVI,TVI,AHD,HD Camera Signal,and modulate the signal to digital signals to transmit by Coaxial cable, then the receiver side will restore the 2CH HD Signal by demodulation for HD DVR(CVI/TVI/AHD) or matrix.
Advantage
1)This Multiplexer is designed to transmit 2-channel video signals
Simplify the installation steps,reduce the wiring problem.
2) Saving transmission cable, saving cost.
Video multiplexing is using the video modulation principle, multiple video made into different frequency, and then mixing prepared multi-channel high frequency signal , and then using a video cable or rf line to transmit , and then use by video conciliation technology to split different high frequency signal synchronous to video signal, thus achieve the multi-channel video signal transmission, multiplexing to one line transmission, which has reached the purpose of saving transmission cable.
3)This Multiplexer is also suitable for reconstruction or upgrade of existing projects,such as adding cameras and console controls into existing monitor system.
Application:
The unit adopts special compression modulation technology, the transmitter side compress 2CH CVI,TVI,AHD,HD Camera Signal,and modulate the signal to digital signals to transmit by Coaxial cable, then the receiver side will restore the 2CH HD Signal by demodulation for HD DVR(CVI/TVI/AHD) or matrix.
Advantage
1)This Multiplexer is designed to transmit 2-channel video signals
Simplify the installation steps,reduce the wiring problem.
2) Saving transmission cable, saving cost.
Video multiplexing is using the video modulation principle, multiple video made into different frequency, and then mixing prepared multi-channel high frequency signal , and then using a video cable or rf line to transmit , and then use by video conciliation technology to split different high frequency signal synchronous to video signal, thus achieve the multi-channel video signal transmission, multiplexing to one line transmission, which has reached the purpose of saving transmission cable.
3)This Multiplexer is also suitable for reconstruction or upgrade of existing projects,such as adding cameras and console controls into existing monitor system.
|
Model Name |
TT-102TRHD-2 |
|
|
Spec. |
2 Channel HD Video Multiplexer |
|
|
Compatible Format |
HDCVI,HDTVI,AHD,CVBS |
|
|
Connection Port |
BNC Connection Port |
|
|
RS485 Control |
No |
|
|
Power Output |
DC12V 1A |
|
|
Power |
≤5W/pc |
|
|
Input reflection loss |
＞15dB |
|
|
Input and output impedance |
75Ω |
|
|
Video bandwidth |
80Mhz |
|
|
Shell Matriel |
· High quality Aluminium alloy |
|
|
Weight |
180G/Pair |
|
|
Dimension |
40*64*23.5mm |
|
|
Working Temperature |
0℃-50℃ |
|
Application:
